Built for Performance
Manganese-steel construction, precision-fit cones, and heavy-duty welds ensure lasting performance in harsh environments.
CEMENT STORAGE SOLUTION
Cement Silos — Horizontal & Vertical Models
Durable, high-capacity silos designed for mobility, safety, and precision. From compact stackable units to large stationary bins—built for concrete producers who demand reliability.
Built for the Field
Performance, speed, and options across every model
Plug-and-Pour Design
Fast setup with integrated conveyors, control panels, and aeration—ready for site use within hours.
Smart Options
Dust collection, level indicators, safety ladders, and handrails available across all models.
Horizontal Models
Portable, stackable, and mobile options

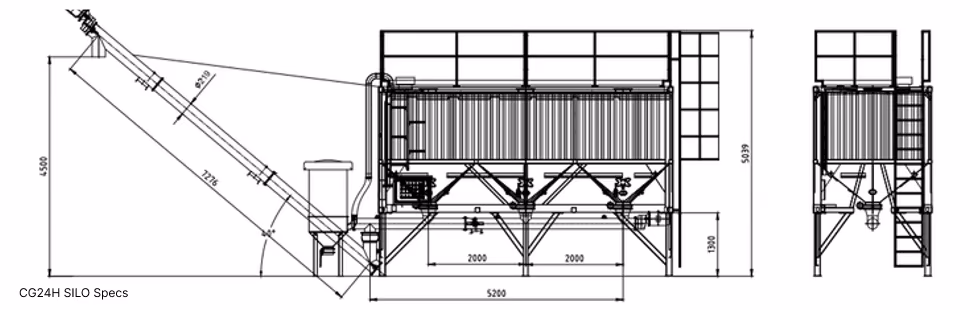

CG24H — Compact Horizontal Silo
24.5 m³ capacity • 40 US tons • 6600 kg weight. Stackable, transport-ready with twin conveyors and WAM R03 dust collector.
Download Specs (PDF)| Capacity | 24.5 m³ |
|---|---|
| Storage | 40 US tons |
| Weight | 6600 kg |
| Configuration | Stackable, twin conveyors |
| Dust Collection | WAM R03 dust collector |
CG27HM — Mobile Horizontal Silo
27 m³ capacity • 38.5 US tons • dual 11 kW conveyors. Includes pulse air-jet dust collector, pressure relief valve, and full control box.
Download Specs (PDF)| Capacity | 27 m³ |
|---|---|
| Storage | 38.5 US tons |
| Conveyors | Dual 11 kW |
| Dust Collection | Pulse air-jet collector |
| Controls | Full control box included |
CG53H model specifications available upon request. Contact us for details.
Vertical Models
High-capacity stationary silos
CG50V — Mid-Capacity Vertical Silo
50 m³ volume • 53 tons storage • polyurethane-coated steel. Optional safety cage, handrail system, and WAM SiloTop filter package.
Download Specs (PDF)| Volume | 50 m³ |
|---|---|
| Storage | 53 tons |
| Material | Polyurethane-coated steel |
| Safety Options | Cage, handrail system (optional) |
| Dust System | WAM SiloTop filter package |

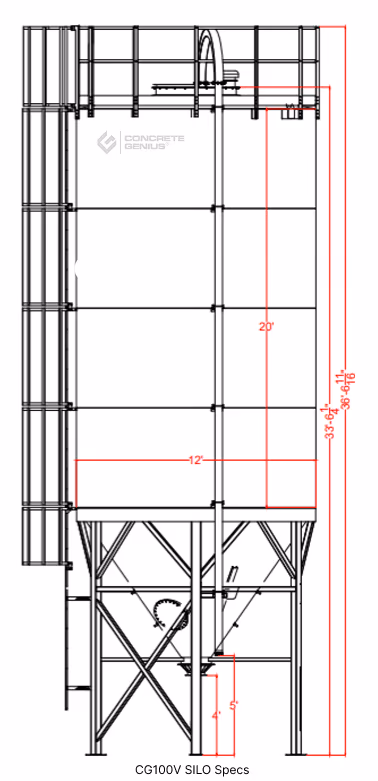

CG100V — High-Capacity Vertical Silo
99 m³ capacity • ~105 tons storage. Equipped with WAM dust collector, pressure relief valve, ladders and handrail kit for max safety.
Download Specs (PDF)| Capacity | 99 m³ |
|---|---|
| Storage | ~105 tons |
| Dust Collection | WAM dust collector |
| Safety Features | Pressure relief valve |
| Access | Ladders and handrail kit |
Model Comparison
At a glance
| Model | Type | Capacity | Storage | Key Features |
|---|---|---|---|---|
| CG24H | Horizontal | 24.5 m³ | 40 US tons | Stackable, twin conveyors |
| CG27HM | Horizontal | 27 m³ | 38.5 US tons | Mobile, full control box |
| CG50V | Vertical | 50 m³ | 53 tons | Safety cage, WAM filter |
| CG100V | Vertical | 99 m³ | ~105 tons | High capacity, full safety kit |
Ready to talk
Get Pricing or Ask About Availability
Tell us your unique needs and requirements, and we'll recommend the best fit model and provide accurate pricing.
Enquire Pricing
